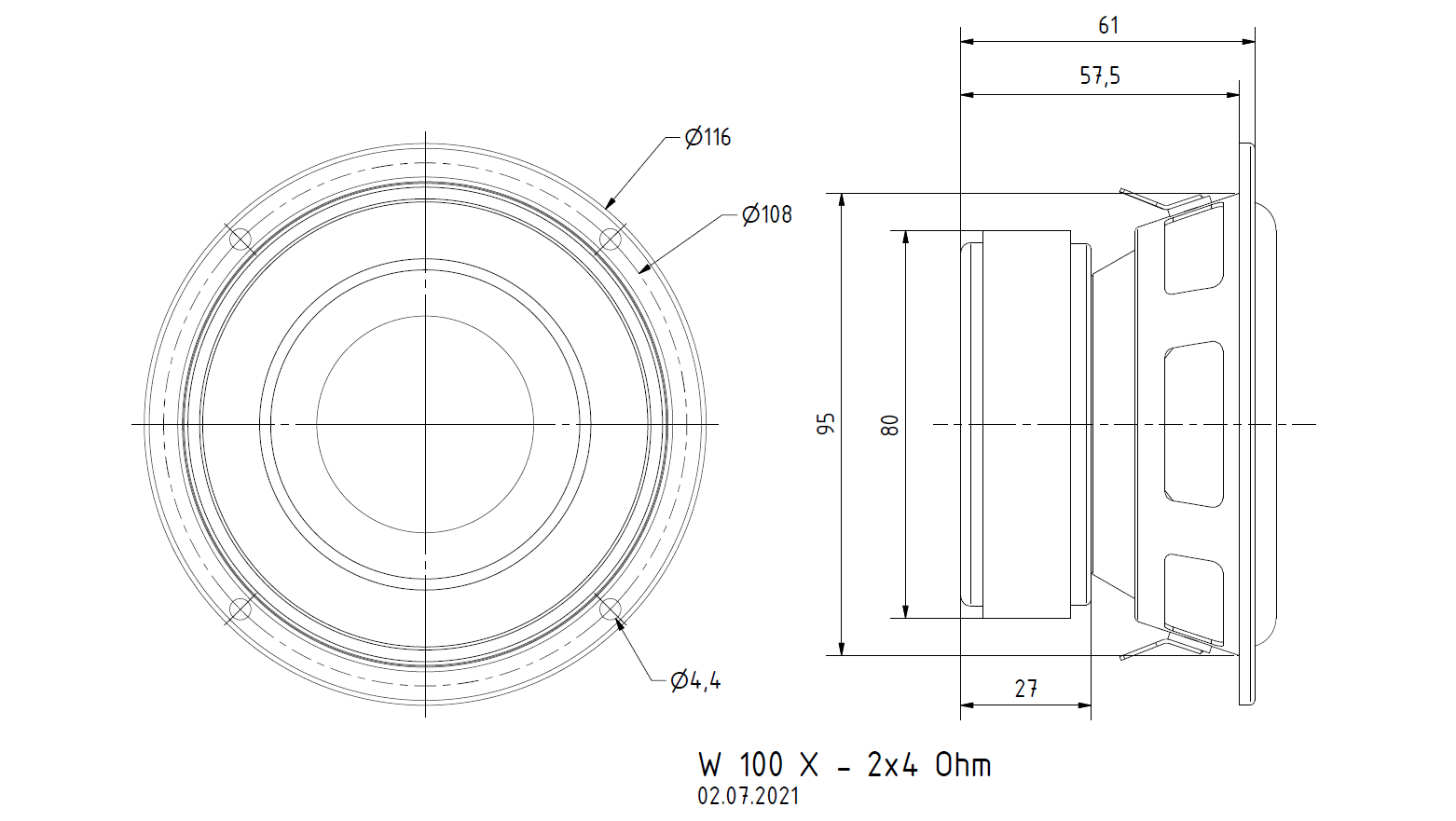

W 100 X - 2 x 4 Ohm

Art. No. 9049

10 cm (4”) woofer with low resonant frequency and compact size. The wide and elastic rubber
surround allows for a large excursion. A 2x4 Ohm dual voice coil allows 2, 4 and 8 Ohm
operation, as well as stereo connection, for example via the rear channels of a car radio. The
easy-to-install and visually appealing metal basket make the W 100 X a versatile subwoofer
for hi-fi and industry.

Possible connections: (1) one voice coil not connected (2) both voice coils in series (3) both voice coils in parallel

Rated power	40 W
Maximum power	60 W
Nominal impedance Z	(1) 4 Ohm/(2) 8 Ohm/(3) 2 Ohm
Frequency response	45 - 12000 Hz
Mean sound pressure level	81 dB (1 W/1 m)
Excursion limit	+/−7.5 mm
Resonance frequency fs	63
Magnetic induction	0.85 T
Magnetic flux	243 µWb
Height of front pole-plate	3.5 mm
Voice coil diameter	26 mm
Height of winding	10 mm
Cutout diameter	97 mm
Net weight	0.76 kg
D.C. resistance Rdc	(1) 3.6 Ohm/(2) 7.2 Ohm/(3) 1.8 Ohm
Mechanical Q factor Qms	(1) 3.17/(2) 3.33/(3) 2.74
Electrical Q factor Qes	(1) 0.95/(2) 0.48/(3) 0.43
Total Q factor Qts	(1) 0.73/(2) 0.42/(3) 0.37
Equivalent volume Vas	(1) 2.63 l(2) 2.24 l(3) 2.89 l
Effective piston area Sd	51.5 cm²
Dynamically moved mass Mms	10.4 g
Force factor Bxl	(1) 3.02 Tm/(2) 7.93 Tm/(3) 3.75 Tm
Inductance of the voice coil L	(1) 0.46 mH/(2) 1.49 mH/(3) 0.41 mH
Connections	4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Mounting depth	58 mm
Übertragungsbereich	45 - 12000 Hz

Rated power

40 W

Maximum power

60 W

Nominal impedance Z

(1) 4 Ohm/(2) 8 Ohm/(3) 2 Ohm

Frequency response

45 - 12000 Hz

Mean sound pressure level

81 dB (1 W/1 m)

Excursion limit

+/−7.5 mm

Resonance frequency fs

Magnetic induction

0.85 T

Magnetic flux

243 µWb

Height of front pole-plate

3.5 mm

Voice coil diameter

26 mm

Height of winding

10 mm

Cutout diameter

97 mm

Net weight

0.76 kg

D.C. resistance Rdc

(1) 3.6 Ohm/(2) 7.2 Ohm/(3) 1.8 Ohm

Mechanical Q factor Qms

(1) 3.17/(2) 3.33/(3) 2.74

Electrical Q factor Qes

(1) 0.95/(2) 0.48/(3) 0.43

Total Q factor Qts

(1) 0.73/(2) 0.42/(3) 0.37

Equivalent volume Vas

(1) 2.63 l(2) 2.24 l(3) 2.89 l

Effective piston area Sd

51.5 cm²

Dynamically moved mass Mms

10.4 g

Force factor Bxl

(1) 3.02 Tm/(2) 7.93 Tm/(3) 3.75 Tm

Inductance of the voice coil L

(1) 0.46 mH/(2) 1.49 mH/(3) 0.41 mH

Connections

4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)

Mounting depth

58 mm

Übertragungsbereich

45 - 12000 Hz

Volume/Principle	BR-Channel	fb	fc/QTC
1,3 l/closed	-	-	105 Hz/0,7
3 l/bass reflex	36 mm x 250 mm (dxl)	62 Hz	-
