DSM 25 R - 8 Ohm

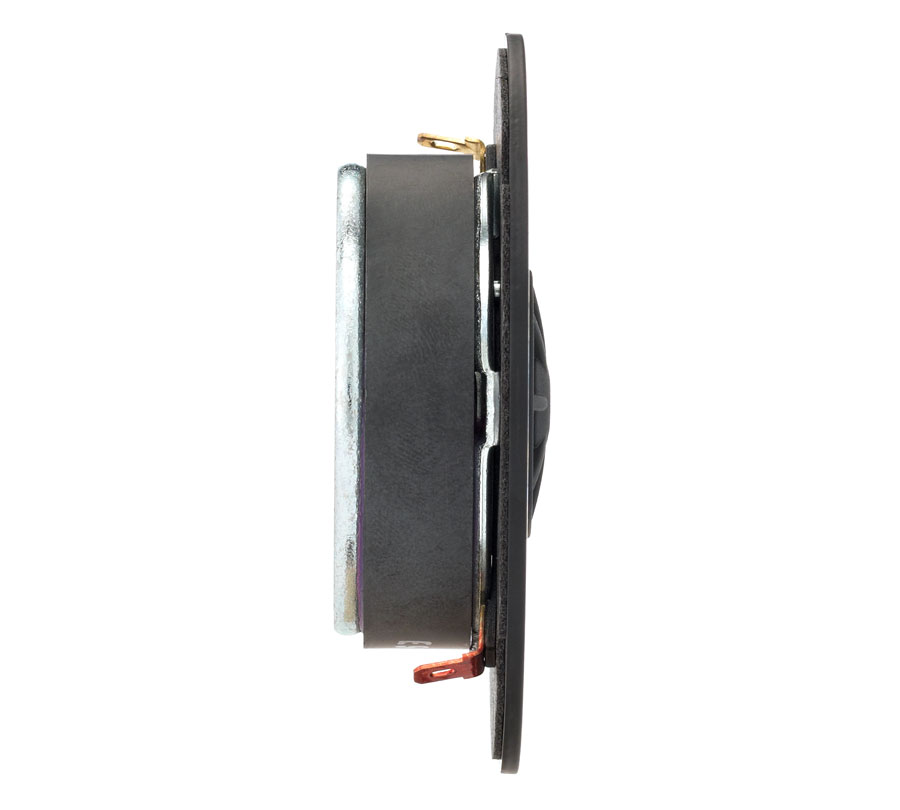

25 mm (1") High-End titanium dome driver for the highrange above 2000 Hz. Due to the enormously strong and ultra-light titanium dome and in conjunction with a highly damped sypronyle surround, linear frequency response and no partial oscillations. Due to the enormously high magnetic flux in the ferrofluid-filled air-gap high efficiency and high power handling are possible.

No longer available

Technical Data

Sketch

Amplitude & Impedance Frequency

Directivity pattern

Waterfall spectrum

Nominal impedance Z	8 Ohm
Frequency response	1000–30000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	138°/8000 Hz
Resonance frequency fs	1600 Hz
Magnetic induction	1.7 T
Magnetic flux	425 µWb
Height of front pole-plate	2.5 mm
Voice coil diameter	25 mm
Height of winding	2 mm
Cutout diameter	80 mm
Net weight	0.53 kg
D.C. resistance Rdc	5.9 Ohm
Mechanical Q factor Qms	1.83
Electrical Q factor Qes	1.87
Total Q factor Qts	0.92
Effective piston area Sd	4.9 cm²
Peak power handling with high pass	140 W (12 dB/Okt.; 2000 Hz)
Nominal power handling with high pass	80 W (12 dB/Okt.; 2000 Hz)

Used in / Accessories:

Information zu älteren Versionen der DSM 25 FFL / DSM 50 FFL

Spare diaphragms

Details

Waveguide WG 220x150

15 x 22 cm Waveguide of high-quality plastic for 25 mm tweeters. The exponential enlargement provides a high sound pressure level gain in the lower high frequency range, which discharges the tweeter. In addition, the focus and the coupling to a woofer are improved, because the sound generation planes move closer together.This Waveguide was adjusted in width and length to 13 cm (e.g., AL 130 8 Ohm) and 20 cm (e.g., AL 200 8 Ohm) loudspeakers.For the connection of the tweeter 4 pieces M4 screws (length approx. 10 mm) are added.This waveguide is suitable for: G 25 FFL 8 Ohm; KE 25 SC 8 Ohm; DSM 25 R 8 OhmPacking unit: 1 pc.

Art. No. 5175
